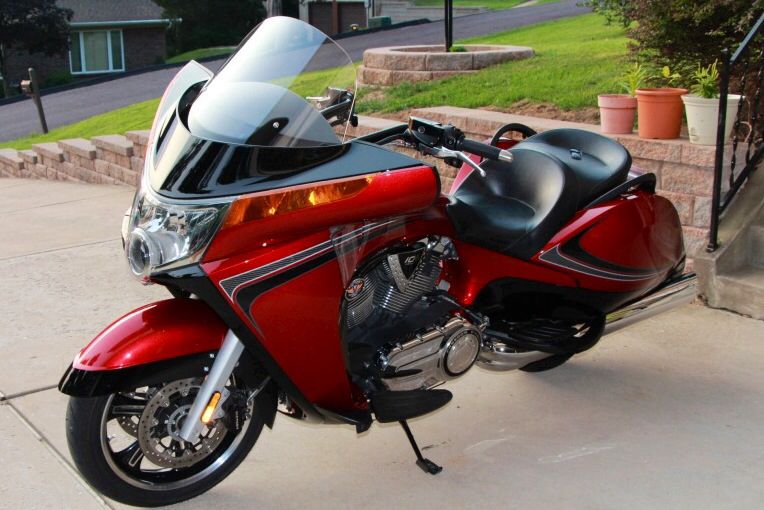

2013 Victory Vision Photos and Specifications



















2013 Victory Vision Tour Specifications





ENGINE


Battery:  12 volts/18 amp hours
Bore x Stroke:  101 x 108mm
Charging System:  48 amps max output
Clutch:  Wet, multi-plate
Compression Ratio:  9.4 : 1
Cooling System:  Air/oil
Displacement:  106 ci/1731 cc
Engine Type:  4-stroke 50o V-Twin
Exhuast:  Split dual exhaust with crossover
Final Drive:  Carbon Fiber-reinforced belt
Fuel Capacity:  6.0 gal/22.7 ltr
Fuel System:  Electronic Fuel Injection with dual 45mm throttle bodies
Oil Capacity:  5.0 qt/4.73 ltr
Primary Drive:  Gear drive with torque compensator
Transmission:  6-speed overdrive constant mesh
Valvetrain:  Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters


CHASSIS


Dry Weight:  851 lb/387 kg
Ground Clearance:  5.8 in/148mm
GVWR:  1414 lb/643 kg
Length:  106.4 in/2702mm
Rake/Trail:  29°/5.4 in/137mm
Seat Height:  26.5 in/673mm
Wheelbase:  65.7 in/1670mm


SUSPENSION


Front Suspension:  Conventional telescopic fork, 46mm diameter, 5.1 in./130mm travel
Rear Suspension:  Single, mono-tube, cast aluminum with constant rate linkage, 3.65 in/92.7mm, air adjustable
Accuracy: This info was provided by Victory, but painstakingly formatted by The VOG. We sure hope it's all correct!


BRAKES


Brake System Type:  Linked ABS
Front Braking System:  Dual 300mm floating rotors with 4-piston calipers
Rear Braking System:  300mm floating rotor with 2-piston caliper


WHEELS & TIRES


Front Tire:  130/70R18 Dunlop D418F Elite 3
Front Wheel:  18 x 3.5 in
Rear Tire: 180/60R16 Dunlop D418 Elite 3
Rear Wheel:  16 x 5.0 in


COLORS/MSRP


Gloss Black:
USA:  $20,999
California:  $21,249
Canada:  $22,899


Two-tone Gold Mist Metallic/Bronze Mist :
USA:  $21,599
California:  $21,849
Canada:  $23,549


Sunset Red & Black with Black Carbon Graphics :
USA:  $21,999
California:  $22,249
Canada:  $23,999




Last update on August 1 2012, 8:52 pm by Andy.
Founder Of The VOG

I am so glad I bought the 2011


Silver/Black with graphics and HID light.


The new colors just don't get me to excited except the all black

1979 Triumph Bonnieville sport
2007 Triumph America Drowned Aug 28 2011
2008 Victory Vision Tour Premium Classic Drowned Aug 28 2011
All Black
2011 Vision Tour Silver and Black
  and  like this.

Can anyone explain why Vic will not put black fork lowers on the Vision?  It's inexcusable that they're not on the black Vision.  Even the Sunset & Black would benefit by blacked-out lowers, IMO.

Trekwolf164 said...


I am so glad I bought the 2011


Silver/Black with graphics and HID light.


The new colors just don't get me to excited except the all black



I've read a lot of your posts with interest and recognize you are passionate about your ride.  I laughed at this post.  Of course you don't like any other color except black.  Didn't you say in an earlier post you've never owned anything but a black bike?   LOL

The only thing necessary for the triumph of evil is for good men to do nothing. -- Edmund Burke

So what did they do to get the extra 1/2 quart in ?

alanATW said...





I've read a lot of your posts with interest and recognize you are passionate about your ride.  I laughed at this post.  Of course you don't like any other color except black.  Didn't you say in an earlier post you've never owned anything but a black bike?   LOL



True but when I lost Deer Crusher to the flood I was going to order the 2012 Vision in Blue.


It was my Dealer that made me an offer I could not refuse on the Silver/Black

1979 Triumph Bonnieville sport
2007 Triumph America Drowned Aug 28 2011
2008 Victory Vision Tour Premium Classic Drowned Aug 28 2011
All Black
2011 Vision Tour Silver and Black

vision_nut said...


So what did they do to get the extra 1/2 quart in ?



That's the 1/2 quart that you can't get out when you do an oil/filter change.


Once again, great job Andy.

Last update on July 31 2012, 7:22 pm by bigfoot.
Member of the Ohio Zoo Crew, a loosely organized Victory riding group in the Akron/Canton area.

2011 Vision Tour with 74,000 miles on her.
Did they change anything?
Life is a vapor, but eternity is forever.

Nessie044 said...


Can anyone explain why Vic will not put black fork lowers on the Vision?  It's inexcusable that they're not on the black Vision.  Even the Sunset & Black would benefit by blacked-out lowers, IMO.






Could not agree more Nessie....that's why I sent mine to WitchDoctor and had them powder coated.  But, it should come that way from the factory.

It's not like it's unprecedented.  They do it on the ANSS Visions, how much extra would it cost Vic to do it on the others?
